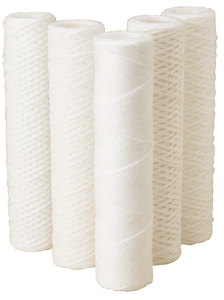

CW/WP Series Polypropylene Wound Cartridges from Pentek® are String-Wound cartridges designed to reduce fine sediment from a variety of fluids. The String-Wound cartridge construction is one of the most economical sediment filter designs and the CW/WP includes both a rigid polypropylene core and polypropylene wound cord in nominal ratings from 5 to 50 micron. The CW cartridge is a very economical standard pattern wound cartridge available in 10, 30, and 50 micron nominal ratings. The WP cartridge is wound in a precise pattern to increase surface area to achieve higher contaminant loading and higher efficiency.
CW and WP Cartridges are sized to fit Slim Line® and Standard Pentek® Filter Housings and can be coupled for 20 Sump lengths.
Please see Manufacturer's Data Sheet for flow charts and more detailed information
Model | Maximum Dimensions | Micron Rating (nominal) | Initial deltaP (psi) @ Flow Rate (gpm) |
---|---|---|---|
CW-F | 2 1/4" x 9 7/8" (60 mm x 251 mm) | 10 | <1 psi @ 10 gpm (<0.07 bar @ 38 Lpm) |
CW-MF | 2 1/4" x 9 7/8" (60 mm x 251 mm) | 30 | <1 psi @ 10 gpm (<0.07 bar @ 38 Lpm) |
CW-50 | 2 1/4" x 9 7/8" (60 mm x 251 mm) | 50 | <1 psi @ 10 gpm (<0.07 bar @ 38 Lpm) |
WP-5 | 2 1/4" x 9 7/8" (60 mm x 251 mm) | 5 | <2.5 psi @ 10 gpm (<0.17 bar @ 38 Lpm) |
WP-30 | 2 1/4" x 9 7/8" (60 mm x 251 mm) | 30 | <1.4 psi @ 10 gpm (<0.17 bar @ 38 Lpm) |
