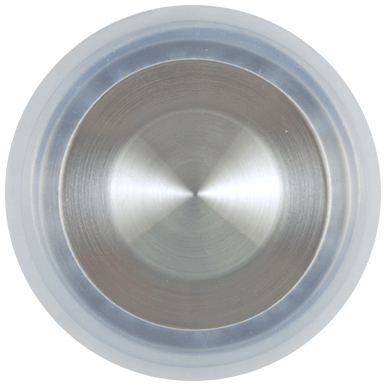

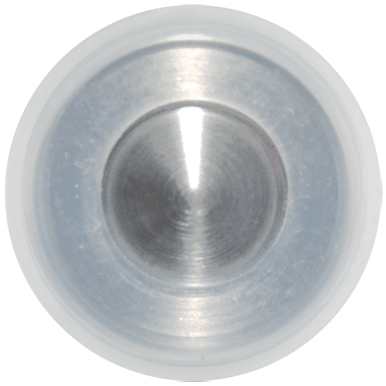

Vertical Orifice Plates are newly introduced to allow for drainability when installed in vertical applications. Orifice Plates are used throughout the Sanitary Process Industries to create back pressure or restrict flow of the process fluid. Sanitary Orifice Plates include a Tri-Clamp® Gasket allowing the orifice plate to be installed in any Sanitary Clamp Connection. Orifice Plates can be drilled by us or as blanks to be drilled at installation. Be sure to contact us for our drill services.
To order drilled Orifice Plates, please Contact Us
| Size | Bore Diameter (A) | Flange Diameter (B) |
|---|---|---|
| 0.5" | 0.37" | 0.922" |
| 0.75" | 0.62" | 0.922" |
| 1" | 0.87" | 1.984" |
| 1.5" | 1.37" | 1.984" |
| 2" | 1.84" | 2.516" |
| 2.5" | 2.25" | 3.047" |
| 3" | 2.75" | 3.579" |
| 4" | 4.25" | 4.682" |
| 6" | 5.834" | 6.57" |
