Sanitary Sample Valves are a necessary part of any Sanitary Process System. The Angle Sanitary Sample Valve offers minimal internal dead-leg area to meet the requirements of even the most demanding FDA regulated Industries.

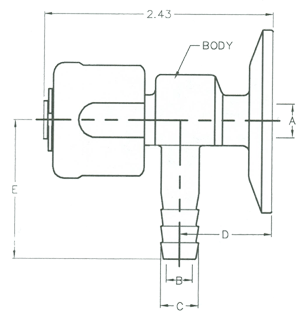

Clamp Size | Barb Size | A | B | C | D | E |
---|---|---|---|---|---|---|
1/2" | 1/4" | 0.218 | 0.187 | 0.312 | 0.972 | 1.5 |
1/2" | 3/8" | 0.218 | 0.218 | 0.405 | 0.952 | 1.5 |
1/2" | 1/2" | 0.218 | 0.375 | 0.54 | 0.878 | 1.5 |
1" | 3/8" | 0.218 | 0.218 | 0.405 | 0.985 | 1.5 |
1 1/2" | 1/4" | 0.218 | 0.187 | 0.312 | 0.987 | 1.5 |
1/2" | 3/8" | 0.218 | 0.218 | 0.405 | 0.985 | 1.5 |
2" | 1/4" | 0.218 | 0.187 | 0.312 | 0.987 | 1.5 |
