316L SS Sample In-Line Valves - Sample, Valves

Thumbnails 316L SS Sample In-Line Valves

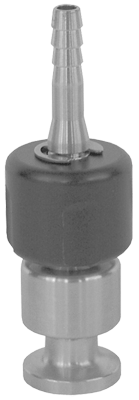

Sanitary Sample Valves are a necessary part of any Sanitary Process System. The Inline Sanitary Sample Valve offers minimal internal dead-leg area to meet the requirements of even the most demanding FDA regulated Industries.

Charts Materials & Specs Spares & Related Applications

Click on a Tab above to view more information.

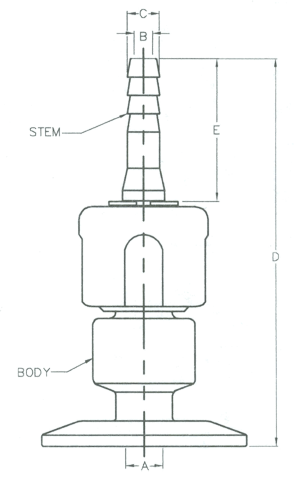

Clamp Size	Barb Size	A	B	C	D	E
1/2"	1/4"	0.218	0.187	0.312	3.844	1.391
3/4"	1/4"	0.218	0.187	0.312	3.844	1.391

Materials & Specifications

316L Stainless Steel
20 Ra ID 32 Ra OD
Virgin Teflon® Seat
FDA Viton® Stem Seat
Nylon Handle Cover
Pressure Max Operating: 200 psig @ 300°F
Material Certificates available when requested with order.

Spares & Related Items

Related Items
Tri-Clamp® Sanitary Gasket
316L SS Sanitary Tri-Clamp® Fittings No. 7
Sanitary Tri-Clamp®

Typical Applications

Food
Dairy
Beverage
Pharmaceutical
Biotech
Pure Water
Water For Injection
