Stainless Steel Industrial Ball Valves serve a wide range of purposes in the Sanitary Process Industries. 2 Piece Industrial Ball Valves represent an economical alternative for many shut-off and throttling applications of non-critical fluids and gases. GVC Direct offers Industrial Ball Valves with FNPT end connections as standard. Contact us for any special ball valve applications.

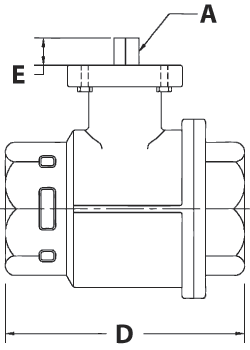

Size | A (in) | B (in) | C (in) | D (in) | E (in) | F (in) |
---|---|---|---|---|---|---|
1/4" | 0.4 | 0.3 | 0.5 | 2.6 | 0.3 | 2 |
3/8" | 0.4 | 0.3 | 0.5 | 2.6 | 0.3 | 2 |
1/2" | 0.4 | 0.3 | 0.6 | 3 | 0.3 | 2 |
3/4" | 0.4 | 0.3 | 0.8 | 3.2 | 0.3 | 2.1 |
1" | 0.4 | 0.3 | 1 | 3.4 | 0.4 | 2.4 |
1 1/4" | 0.4 | 0.3 | 1.3 | 4.3 | 0.4 | 2.6 |
1 1/2" | 0.6 | .28/.35 | 1.5 | 4.7 | 0.6 | 3.1 |
2" | 0.6 | .28/.35 | 2 | 5.5 | 0.6 | 3.7 |
2 1/2" | 0.7 | 0.4 | 2.6 | 7.3 | 0.7 | 3.9 |
3" | 0.7 | 0.4 | 3.2 | 8.1 | 0.7 | 4.4 |
