Stainless Steel Industrial Ball Valves serve a wide range of purposes in the Sanitary Process Industries. 3 Piece Industrial Ball Valves represent a high-end valve with a swing out design for ease of maintenance. GVC Direct offers Industrial Ball Valves with FNPT end connections as standard. Contact us for any special ball valve applications.

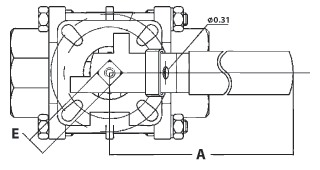

| Size | A (in) | B (in) | C (in) | D (in) | E (mm) |
|---|---|---|---|---|---|
| 1/2" | 4.4 | 1.5 | 2.5 | 2.9 | 9 |
| 3/4" | 4.4 | 1.8 | 2.9 | 3.2 | 9 |
| 1" | 5.4 | 2.1 | 3.2 | 3.6 | 11 |
| 1 1/4" | 7.3 | 2.3 | 3.7 | 3.9 | 11 |
| 1 1/2" | 7.8 | 2.9 | 4.3 | 4.5 | 14 |
| 2" | 7.8 | 3.3 | 4.8 | 4.9 | 14 |
| 2 1/2" | 10.4 | 4.3 | 6.2 | 6.1 | 17 |
| 3" | 10.4 | 4.7 | 7.5 | 8.2 | 17 |
| 4" | 12.8 | 6.1 | 8.9 | 8.5 | 22 |
