3-Way Stainless Steel Industrial Ball Valves serve a wide range of purposes in the Sanitary Process Industries. 3-Way Industrial Ball Valves work well when a fluid or gas flow needs to be diverted between 2 destinations or sources. The “T” pattern designates a "T" pathway within the ball that can divert flow or allow flow through the ball with a 90° actuation of the valve. GVC Direct offers Industrial Ball Valves with FNPT end connections as standard. Contact us for any special ball valve applications.

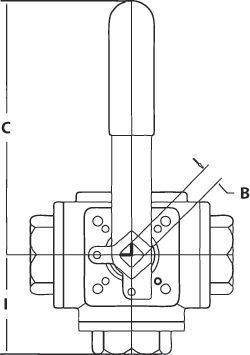

| Size | A (in) | B (mm) | C (in) | D (in) | E (in) | F (in) | G (in) | H (in) | I (in) |
|---|---|---|---|---|---|---|---|---|---|
| 1/4" | 0.43 | 9 | 5.12 | 2.44 | 1.45 | 0.4 | 0.78 | 2.83 | 1.41 |
| 3/8" | 0.47 | 9 | 5.12 | 2.44 | 1.45 | 0.4 | 0.78 | 2.83 | 1.41 |
| 1/2" | 0.59 | 9 | 5.12 | 2.51 | 1.65 | 0.45 | 0.91 | 3.26 | 1.63 |
| 3/4" | 0.78 | 11 | 6.49 | 3.22 | 1.65 | 0.59 | 1.1 | 3.89 | 1.94 |
| 1" | 0.98 | 11 | 6.49 | 3.5 | 2.18 | 0.55 | 1.33 | 4.4 | 2.2 |
| 1 1/4" | 1.25 | 14 | 8.07 | 3.85 | 2.48 | 0.64 | 1.53 | 4.92 | 2.46 |
| 1 1/2" | 1.5 | 14 | 8.07 | 4.25 | 2.88 | 0.62 | 1.88 | 5.86 | 2.93 |
| 2" | 2 | 17 | 12.79 | 5.51 | 3.63 | 0.88 | 2.36 | 6.85 | 3.42 |
