Bi-Metal Thermowells are often used to adapt a thermometer or temperature instrument to an industrial pipe or connection. The Thermowell allows the instrument to be removed for repair or replacement without opening the process connection. GVC Direct offers a number of instruments and thermowells to meet nearly any process instrument application. Contact us for any special needs.

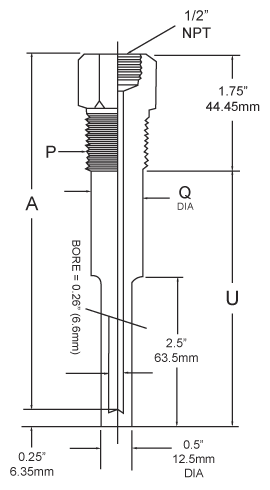

| Overall Length (A) | P | U | Q |
|---|---|---|---|
| 2 1/2" | 1/2" | 1 .375" | 0.5" |
| 2 1/2" | 3/4" | 1 .375" | 0.5" |
| 4" | 1/2" | 2.5" | 0.5" |
| 4" | 3/4" | 2.5" | 0.5" |
| 4" | 1" | 2.5" | 0.5" |
| 6" | 1/2" | 4.5" | 0.625" |
| 6" | 3/4" | 4.5" | 0.75" |
| 6" | 1" | 4.5" | 0.875" |
| 9" | 1/2" | 7.5" | 0.625" |
| 9" | 3/4" | 7.5" | 0.75" |
| 9" | 1" | 7.5" | 0.875" |
| 12" | 1/2" | 10.5" | 0.625" |
| 12" | 3/4" | 10.5" | 0.75" |
| 12" | 1" | 10.5" | 0.875" |
