3-Way brass industrial ball valves serve a wide range of purposes in the sanitary process industries. 3-Way industrial ball valves work well when a fluid or gas flow needs to be diverted between 2 destinations or sources. The “L” pattern designates an "L" pathway within the ball that can alternate between two sources or destinations with a 90° actuation of the valve. GVC Direct offers industrial ball valves with FNPT end connections as standard. Contact us for any special ball valve applications.

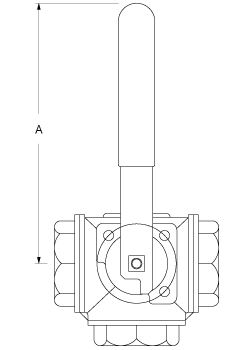

| Size (in) | A (in) | B (in) | C (in) |
|---|---|---|---|
| 0.25 | 4.8 | 2.4 | 2.6 |
| 3/8 | 4.8 | 2.4 | 2.6 |
| 0.5 | 4.8 | 2.4 | 2.9 |
| 0.75 | 4.8 | 2.5 | 3.2 |
| 1 | 6.7 | 3 | 3.7 |
| 1.25 | 6.7 | 3.2 | 4.4 |
| 1.5 | 6.7 | 3.7 | 4.9 |
| 2 | 9.1 | 4.4 | 5.7 |
| 2.5 | 9.1 | 4.9 | 6.9 |
| 3 | 9.1 | 4.9 | 7.1 |
| Size (in) | Break Torque (in-lbs) | ISO 5211 |
|---|---|---|
| 0.25 | 53.1 | F03 |
| 3/8 | 53.1 | F03 |
| 0.5 | 53.1 | F03 |
| 0.75 | 53.1 | F03 |
| 1 | 150.46 | F05 |
| 1.25 | 150.46 | F05 |
| 1.5 | 150.46 | F05 |
| 2 | 274.37 | F07 |
| 2.5 | 380.58 | F07 |
| 3 | 380.58 | F07 |
