Industry Abbreviations | |
---|---|
BK | Black |
BL | Blue |
CL | Clear |
HFPP | High-Flow Polypropylene |
IB | Integral Bracket |
LX | Lexan |
MB | Mounting Bosses for MC-1A Bracket |
MM | Meter Mount for Differential Pressure Guages |
PR | Pressure Release |
QC | John Guest® Quick Connect |
W/ | With |
W/O | Without |
WH | White |

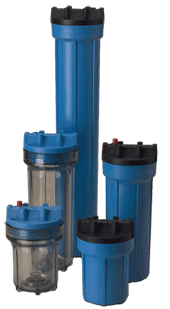

Slim Line® Filter Housings are an industry standard type of housing used in many low-flow water and fluid filtration applications from residential use to commercial and industrial applications. The Slim Line® is very adaptable since it is available in 5, 10, and 20 lengths with inlets from 1/4, 3/8, or 1/2 NPT. Slim Line® Filter Housings are supported with a broad range of sediment, carbon, and specialty cartridges for many filtration and water purification applications. Slim Line® Filter Housings are available in opaque or clear sump or bowl options. An optional pressure-relief button is available, too.
Slim Line® Filter Housings accept all Double Open End filter cartridges that are 2 1/2 diameter and meets the following lengths:
Slim Line® #5 - cartridge length 4 7/8
Slim Line® #10 - cartridge length 9 3/4 or 9 7/8
Slim Line® #20 - cartridge length 20
Please see Manufacturer's Data Sheet for flow charts and more detailed information
Show AbbreviationsModel | Maximum Dimensions | Initial deltaP (psi) @ Flow Rate (gpm) |
---|---|---|
#5 Clear | 7 3/8" x 4 5/8" (187 mm x 118 mm) | 1/4" NPT-2 psi @ 3 gpm (0.14 bar @ 11 Lpm) |
#10 Clear | 12 1/8" x 4 5/8" (308 mm x 118 mm) | 3/8" NPT-2 psi @ 5 gpm (0.14 bar @ 19 Lpm) |
#5 Opaque | 7" x 4 3/8" (178 mm x 111 mm) | 1/4" NPT-2 psi @ 3 gpm (0.14 bar @ 11 Lpm) |
#10 Opaque | 11 3/4" x 4 3/8" (299 mm x 111 mm) | 1/2" NPT-2 psi @ 5 gpm (0.14 bar @ 19 Lpm) |
#20 Opaque | 21 7/8" x 4 3/8" (556 mm x 111 mm) | 1/2" NPT-2 psi @ 5 gpm (0.14 bar @ 19 Lpm) |
