Industry Abbreviations | |
---|---|
BK | Black |
BL | Blue |
CL | Clear |
HFPP | High-Flow Polypropylene |
IB | Integral Bracket |
LX | Lexan |
MB | Mounting Bosses for MC-1A Bracket |
MM | Meter Mount for Differential Pressure Guages |
PR | Pressure Release |
QC | John Guest® Quick Connect |
W/ | With |
W/O | Without |
WH | White |

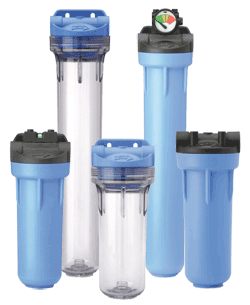

3G Standard Filter Housings represent a major improvement on the Pentek® Standard Housing. 3G, or Third Generation, Standard Housings have improved buttress threads for strength and easier cartridge changes, and Top-Seated Floating O-Ring for leak proof sealing. The 3G Standard Housing is available in a generous 3/4 NPT connection for higher flow rates. The 3G cap includes a mounting boss, an optional integral bracket, a meter mount (pressure gauge sold separately), and an optional pressure relieve bleed valve. The 3G design accepts the Pentek® Seal-Safe™ double o-ring cartridge as well as the traditional Double Open End filter cartridge. 3G Standard Housings are supported with a broad range of sediment, carbon, and specialty cartridges for many filtration and water purification applications. 3G Standard Housings are available in Opaque or Clear sump or bowl options, too.
3G Standard Filter Housings accept all Double Open End filter cartridges that are 2 1/2 to 3 1/8 diameter, and 10 or 20 in length. Pentek® Seal-Safe™ 10 and 20 cartridges are supported, too.
Please see Manufacturer's Data Sheet for flow charts and more detailed information
Show AbbreviationsModel | Maximum Dimensions | Initial deltaP (psi) @ Flow Rate (gpm) |
---|---|---|
3G #10 Blue or Clear MB | 12 3/4" x 5 3/8" (324 mm x 137 mm) | 1 psi @ 10 gpm (0.07 bar @ 38 Lpm) |
3G #10 Blue or Clear MB | 13 1/4" x 5 3/4" (337 mm x 146 mm) | 1 psi @ 10 gpm (0.07 bar @ 38 Lpm) |
3G #20 Blue or Clear MB | 23" x 5 3/8" (597 mm x 137 mm) | 1 psi @ 10 gpm (0.07 bar @ 38 Lpm) |
3G #20 Blue or Clear IB/MM* | 23 1/2" x 5 3/4" (597 mm x 146 mm) | 1 psi @ 10 gpm (0.07 bar @ 38 Lpm) |
*Height does not include meter. |
