Industry Abbreviations | |
---|---|
BK | Black |
BL | Blue |
CL | Clear |
HFPP | High-Flow Polypropylene |
IB | Integral Bracket |
LX | Lexan |
MB | Mounting Bosses for MC-1A Bracket |
MM | Meter Mount for Differential Pressure Guages |
PR | Pressure Release |
QC | John Guest® Quick Connect |
W/ | With |
W/O | Without |
WH | White |

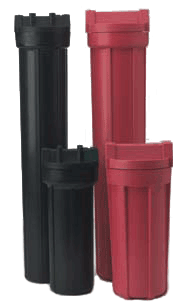

Pentek® High Temperature Filter Housings are constructed of glass-reinforced nylon, and are a cost effective alternative to stainless steel or carbon steel housings. Our High Temperature Housings with 1/2 NPT inlets (Slim Line®) can withstand operating temperatures to 160°F (71.1°C), and 3/4 NPT housings (standard) can withstand up to 165°F (73.9°C). Be sure to check the pressure and temperature charts for your application. High Temperature housings are an ideal choice for industrial applications including organic solvents, sea water, alcohols, petroleum, and vegetable oils. Fluids containing Ketones should be avoided.
High Temperature Filter Housings accept all Double Open End filter cartridges that are 2 1/2 to 2 7/8 diameter, and meets the following lengths:
High Temperature #10 - cartridge length 9 3/4 or 9 7/8
High Temperature #20 - cartridge length 20
Note - 1/2 NPT (Slim Line®) housings are restricted to 2 1/2 diameter cartridges.
Please see Manufacturer's Data Sheet for flow charts and more detailed information
Show AbbreviationsModel | Maximum Dimensions | Initial deltaP (psi) @ Flow Rate (gpm) |
---|---|---|
#10 Standard 3/4" | 12 1/8" x 5 1/8" (308 mm x 130 mm) | <1 psi @ 8 gpm (<0.1 bar @ 30 Lpm) |
#20 Standard 3/4" | 22 1/4" x 5 1/8" (565 mm x 130 mm) | <1 psi @ 8 gpm (<0.1 bar @ 30 Lpm) |
#10 Slim Line® 1/2" | 11 3/4" x 4 3/8" (298 mm x 111 mm) | 5 psi @ 8 gpm (<0.4 bar @ 30 Lpm) |
