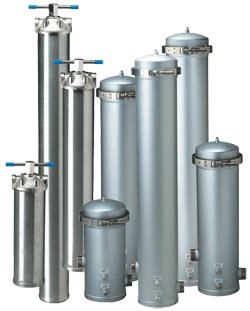

Pentek® ST Series Stainless Steel Filter Housings are an industry standard metal housing type used in many corrosive and high temperature fluid filtration applications. The ST filter housing is very adaptable since it is available in 10, 20, and 30 lengths with a generous 3/4 NPT for flow rates up to 20 gpm (76 lpm). Stainless Steel ST Filter Housings are ideal for hot water and high pressure applications where a plastic housing is less than favorable.
Slim Line® Filter Housings accept all Double Open End filter cartridges that are 2 1/2 to 2 7/8 diameter and meets the following lengths:
ST #10 - cartridge length 9 3/4 or 9 7/8
ST #20 - cartridge length 20
ST #30 - cartridge length 30
ST-BC Stainless Steel Filter Housings offer a variety of solutions for large scale and heavy duty filtration needs. These housings hold from 4 to 20 cartridges in multi-round configuration to provide flow rates from 28-125 gpm (106-473 lpm). These housings include clean and dirty side drain ports, a vent port for easy servicing, and 2 inlets for high-flow applications. ST-BC Series Housings are available in #10, #20, #30 and #40 length cartridges, in 4 round or 5 round configuration.
Please see ST - Manufacturer's Data Sheet for flow charts and more detailed information
Please see ST-BC - Manufacturer's Data Sheet for flow charts and more detailed information
Show AbbreviationsModel | Maximum Dimensions | Flow Rate (gpm) | Maximum Pressure |
---|---|---|---|
ST-1 | 12 7/8" x 4 1/8" (327 mm x 105 mm) | 10 gpm (38 Lpm) | 250 psi (17.2 bar) |
ST-2 | 22 3/4" x 4 1/8" (578 mm x 105 mm) | 15 gpm (57 Lpm) | 250 psi (17.2 bar) |
ST-3 | 32 3/8" x 4 1/8" (822 mm x 105 mm) | 20 gpm (76 Lpm) | 250 psi (17.2 bar) |
Maximum cartridge diameter 3" (76 mm). | |||
Will not accept GAC, CC, CGAC, TSGAC, WS, PCF, or PCC Series Cartridges. |
Model | Dimensions (Height x O.A. Dia.) | Recommended* Flow Rates | Max. No.** Cartridges | Max. Cart. Diameter | Max. Cartridge Length | Pipe Size (NPT) |
---|---|---|---|---|---|---|
ST-BC-4 | 19 1/4" x 10" (489 mm x 254 mm) | 28 gpm (106 Lpm) | 4 x 1 | 3" (76 mm) | 9 3/4" or 10" (248 mm or 254 mm) | 2" (50.8 mm) |
ST-BC-8 | 29" x 10" (737 mm x 254 mm) | 56 gpm (212 Lpm) | 4 x 2 | 3" (76 mm) | 9 3/4" or 10" (248 mm or 254 mm) | 2" (50.8 mm) |
ST-BC-12 | 39 3/4" x 10" (1010 mm x 254 mm) | 84 gpm (318 Lpm) | 4 x 3 | 3" (76 mm) | 9 3/4" or 10" (248 mm or 254 mm) | 2" (50.8 mm) |
ST-BC-16 | 49 3/4" x 10" (1264 mm x 254 mm) | 110 gpm (416 Lpm) | 4 x 4 | 3" (76 mm) | 9 3/4" or 10" (248 mm or 254 mm) | 2" (50.8 mm) |
ST-BC-20 | 49 3/4" x 10" (1264 mm x 254 mm) | 125 gpm (473 Lpm) | 5 x 4 | 2 1/2" (64 mm) | 9 3/4" or 10" (248 mm or 254 mm) | 2" (50.8 mm) |
Will not accept GAC, CC, CGAC, TSGAC, WS, PCF, or PCC Series Cartridges. |
