Industry Abbreviations | |
---|---|
BK | Black |
BL | Blue |
CL | Clear |
HFPP | High-Flow Polypropylene |
IB | Integral Bracket |
LX | Lexan |
MB | Mounting Bosses for MC-1A Bracket |
MM | Meter Mount for Differential Pressure Guages |
PR | Pressure Release |
QC | John Guest® Quick Connect |
W/ | With |
W/O | Without |
WH | White |

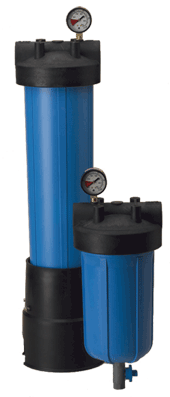

Pentek's Bag Vessel Assemblies keep your system on stream longer by reducing bag filter change time. Bag filters offer an excellent choice for high flow-rates and/or high levels of sediment when compared to cartridge filters. Pentek's Bag Vessel housing is made of lightweight corrosion resistant polypropylene, and provides excellent strength for the weight. All PBH's come with a gauge, wrench, and 3/8 drain valve for a complete package. The acme thread closure ensures quick opening and positive sealing. Filter bags are available in polypropylene felt, absolute-rated high-efficiency polypropylene, and nylon monofilament mesh - ideal for filtering and straining from 1 to 800 microns. Big Blue® Housings are available in Opaque or Clear sump or bowl options, 1 or 1 1/2 NPT inlets, and optional pressure relief buttons, too.
Please see Manufacturer's Data Sheet for flow charts and more detailed information
Show AbbreviationsModel | Maximum Dimensions | Initial deltaP (psi) @ Flow Rate (gpm) | Maximum Pressure |
---|---|---|---|
PBH-410-1 (1" NPT) | 13 1/8" x 7 1/4" (333 mm x 184 mm) | 1 psi @ 15 gpm (0.07 bar @ 57 Lpm) | 100 psi (6.9 bar) |
PBH-410-1.5 (1 1/2" NPT) | 13 5/8" x 7 1/4" (346 mm x 184 mm) | 1 psi @ 15 gpm (0.07 bar @ 57 Lpm) | 100 psi (6.9 bar) |
PBH-420-1 (1" NPT) | 23 3/8" x 7 1/4" (594 mm x 184 mm) | 1 psi @ 15 gpm (0.07 bar @ 57 Lpm) | 90 psi (6.2 bar) |
PBH-420-1 (1 1/2" NPT) | 23 7/8" x 7 1/4" (606 mm x 184 mm) | 1 psi @ 15 gpm (0.07 bar @ 57 Lpm) | 90 psi (6.2 bar) |
PBH-410 accepts a standard 4" x 8 1/4" (102 mm x 210 mm) bag. Dimensions allow for 1" (25 mm) overlap in basket. | |||
PBH-420 accepts a standard 4" x 18 1/2" (102 mm x 470 mm) bag. Dimensions allow for 1" (25 mm) overlap on basket. |
