Home : Pump & Valve Parts : C Series Pump Parts & Kits : C216 Parts

C216 Pump Parts

C216 Parts
C Series Pump
C216 Parts
Retainer D/F Seals
C216 Parts
Clamped-in Seal Seat
C216 Parts
Retainer E Seals
C216 Parts
Threaded Shaft

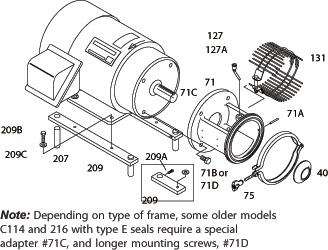

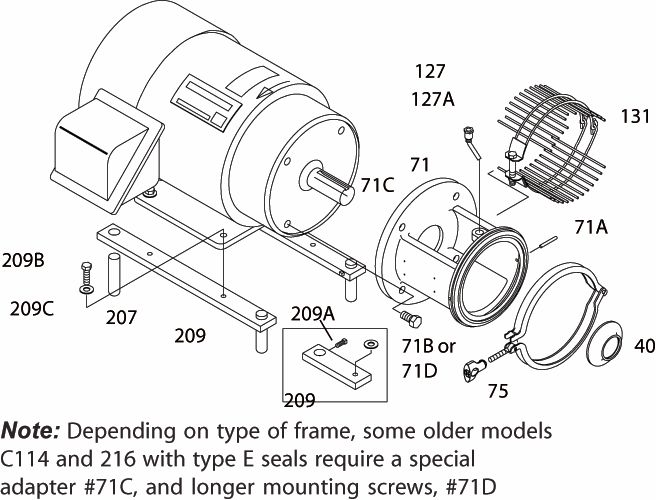

Mouse over the image below for a zoomed image of the parts blowout.
Zoomed Image
C Series Pump
Please contact GVC if you need faster delivery.
Key
Description
Price
Qty
2
Impeller for C216 Pumps
Product Code: 103-115902
Contact GVC
6D
Stub Shaft, Acme Threaded for C216 Pumps, 180TC NEMA Frame
Product Code: 103-115903
Contact GVC
6D
Stub Shaft, Acme Threaded for C216 Pumps, 140TC NEMA Frame
Product Code: 103-115904
Contact GVC
6D
Stub Shaft, Acme Threaded for C216 Pumps, 56C NEMA Frame
Product Code: 103-115905
Contact GVC
6D
Stub Shaft, Acme Threaded for C216 Pumps, 210TC NEMA Frame
Product Code: 103-115906
Contact GVC
6D
Stub Shaft, Acme Threaded for C216 Pumps, 250TC NEMA Frame
Product Code: 103-115907
Contact GVC
6E
Stub Shaft, Standard for C216 Pumps, 180TC NEMA Frame
Product Code: 103-115908
Contact GVC
6E
Stub Shaft, Standard for C216 Pumps, 210TC NEMA Frame
Product Code: 103-115909
Contact GVC
6E
Stub Shaft, Standard for C216 Pumps, 56C NEMA Frame
Product Code: 103-115910
Contact GVC
6E
Stub Shaft, Standard for C216 Pumps, 140TC NEMA Frame
Product Code: 103-115911
Contact GVC
6E
Stub Shaft, Standard for C216 Pumps, 250TC NEMA Frame
Product Code: 103-115912
Contact GVC
11
Back Plate for C216 Pumps
Product Code: 103-115913
Contact GVC
11B
Back Plate, E Balanced for C216 Pumps
Product Code: 103-115914
Contact GVC
11F
Back Plate Pin for C216 Pumps
Product Code: 103-115915
Contact GVC
11H
Back Plate, DG Seat for C216 Pumps
Product Code: 103-115916
Contact GVC
17
Follower for C216 Pumps
Product Code: 103-115917
Contact GVC
17B
O-Ring, E Balanced for C216 Pumps
Product Code: 103-115918
Contact GVC
17J
Gland Ring, DG Seal for C216 Pumps
Product Code: 103-115919
Contact GVC
24
Impeller Retainer for C216 Pumps
Product Code: 103-115920
Contact GVC
24A
Castellated Nut, Acme Threaded for C216 Pumps
Product Code: 103-115921
Contact GVC
40
Deflector for C216 Pumps, 50C/140TC/180TC NEMA
Product Code: 103-115922
Contact GVC
40
Deflector for C216 Pumps, 210TC NEMA
Product Code: 103-115923
Contact GVC
40
Deflector for C216 Pumps, 250TC NEMA
Product Code: 103-115924
Contact GVC
75
Clamp Assembly for C216 Pumps
Product Code: 103-115925
Contact GVC
80
Carbon Seal for C216 Pumps
Product Code: 103-115926
Contact GVC
80A
Seal Cup for C216 Pumps
Product Code: 103-115927
Contact GVC
80B
O-Ring, Seal for C216 Pumps, Buna-N
Product Code: 103-115928
Contact GVC
80B
O-Ring, Seal for C216 Pumps, EPDM
Product Code: 103-115929
Contact GVC
80B
O-Ring, Seal for C216 Pumps, Viton® (SFY)
Product Code: 103-115930
Contact GVC
80C
Seal Spring for C216 Pumps
Product Code: 103-115931
Contact GVC
80G
Cup, E Balanced for C216 Pumps
Product Code: 103-115932
Contact GVC
80H
Spring, E Balanced for C216 Pumps
Product Code: 103-115933
Contact GVC
80J
Drive Collar, E Balanced for C216 Pumps
Product Code: 103-115934
Contact GVC
80N
Seat, Type DG for C216 Pumps, Tungsten Carbine (TC)
Product Code: 103-115935
Contact GVC
80N
Seat, Type DG for C216 Pumps, Ceramic
Product Code: 103-115936
Contact GVC
80N
Seat, Type DG for C216 Pumps, Silicone Carbide (SC)
Product Code: 103-115937
Contact GVC
80P
Gasket, Outboard, Type DG for C216 Pumps, PTFE
Product Code: 103-115938
Contact GVC
80R
Gasket, Inboard, Type DG for C216 Pumps, PTFE
Product Code: 103-115939
Contact GVC
83C
Stuffing Box, E Balanced for C216 Pumps
Product Code: 103-115940
Contact GVC
83E
O-Ring for C216 Pumps, Buna-N
Product Code: 103-115941
Contact GVC
83E
O-Ring for C216 Pumps, EPDM
Product Code: 103-115942
Contact GVC
83E
O-Ring for C216 Pumps, Viton® (SFY)
Product Code: 103-115943
Contact GVC
90
Casing Gasket for C216 Pumps, Buna-N
Product Code: 103-115944
Contact GVC
90
Casing Gasket for C216 Pumps, EPDM
Product Code: 103-115945
Contact GVC
90
Casing Gasket for C216 Pumps, Viton® (SFY)
Product Code: 103-115946
Contact GVC
