Home : Pump & Valve Parts : Waukesha S200 Series Centrifugal Pump Parts & Kits : S2065, S2065LV, S2065HV Parts

S2065, S2065LV, S2065HV Parts

S2065, S2065LV, S2065HV Parts
S2065, S2065LV, S2065HV Pump

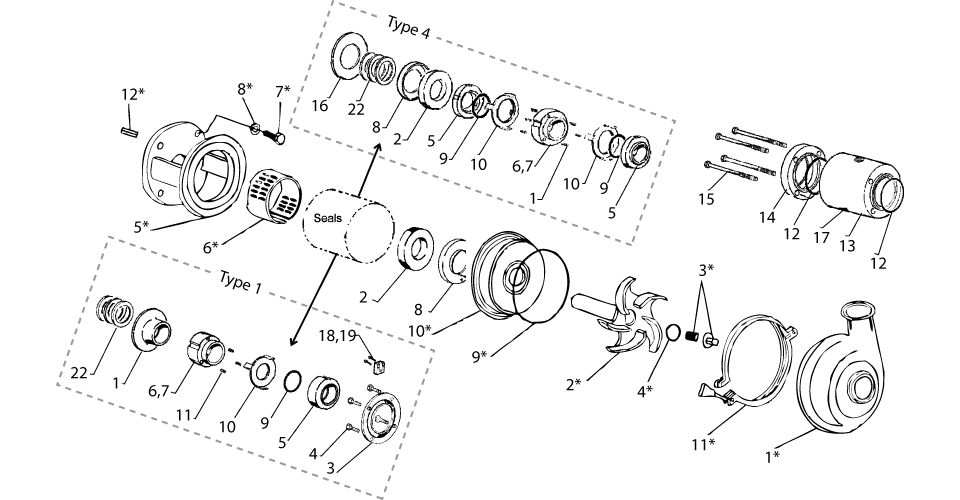

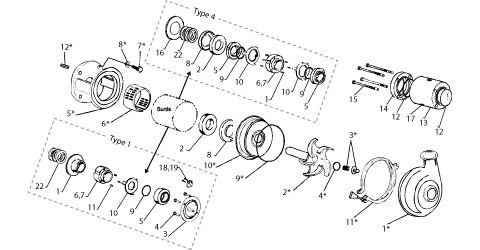

Mouse over the image below for a zoomed image of the parts blowout.
Zoomed Image
S2065, S2065LV, S2065HV Pump
Please contact GVC if you need faster delivery.
Key
Description
Price
Qty
1
Deflector for Waukesha S2065 Pumps
Product Code: 103-116263
Contact GVC
2
Stationary Seal for Waukesha S2065 Pumps, Purbibe
Product Code: 103-116264
Contact GVC
2
Stationary Seal for Waukesha S2065 Pumps, Silicone Carbide
Product Code: 103-116265
Contact GVC
2
Stationary Seal for Waukesha S2065 Pumps, Ceramic
Product Code: 103-116266
Contact GVC
2
Stationary Seal for Waukesha S2065 Pumps, Tungsten Carbide
Product Code: 103-116267
Contact GVC
3
Stationary Seal Retainer for Waukesha S2065 Pumps
Product Code: 103-116268
Contact GVC
4
Bolt for Waukesha S2065 Pumps
Product Code: 103-116269
Contact GVC
5
Rotary Seal for Waukesha S2065 Pumps, Carbon
Product Code: 103-116270
Contact GVC
5
Rotary Seal for Waukesha S2065 Pumps, Purbibe
Product Code: 103-116271
Contact GVC
5
Rotary Seal for Waukesha S2065 Pumps, Silicone Carbide
Product Code: 103-116272
Contact GVC
5
Rotary Seal for Waukesha S2065 Pumps, Tungsten Carbide
Product Code: 103-116273
Contact GVC
6
Set Screw for Waukesha S2065 Pumps
Product Code: 103-116274
Contact GVC
7
Spring Retainer (23-77) for Waukesha S2065 Pumps
Product Code: 103-116275
Contact GVC
8
L-Gasket for Waukesha S2065 Pumps, Viton® (SFY, FKM)
Product Code: 103-116276
Contact GVC
8
L-Gasket for Waukesha S2065 Pumps, EPDM
Product Code: 103-116277
Contact GVC
8
L-Gasket for Waukesha S2065 Pumps, FFKM
Product Code: 103-116278
Contact GVC
8
L-Gasket for Waukesha S2065 Pumps, Silicone
Product Code: 103-116279
Contact GVC
9
Seal O-Ring for Waukesha S2065 Pumps, Viton® (SFY, FKM)
Product Code: 103-116280
Contact GVC
9
Seal O-Ring for Waukesha S2065 Pumps, EPDM
Product Code: 103-116281
Contact GVC
9
Seal O-Ring for Waukesha S2065 Pumps, Chemrez
Product Code: 103-116282
Contact GVC
9
Seal O-Ring for Waukesha S2065 Pumps, FFKM
Product Code: 103-116283
Contact GVC
9
Seal O-Ring for Waukesha S2065 Pumps, Silicone
Product Code: 103-116284
Contact GVC
10
Washer Tabed for Waukesha S2065 Pumps
Product Code: 103-116285
Contact GVC
11
Spring Retainer (24-65) for Waukesha S2065 Pumps
Product Code: 103-116286
Contact GVC
12
O-Ring, Housing for Waukesha S2065 Pumps
Product Code: 103-116287
Contact GVC
13
Housing, Seal for Waukesha S2065 Pumps
Product Code: 103-116288
Contact GVC
14
Retainer, Seat for Waukesha S2065 Pumps
Product Code: 103-116289
Contact GVC
15
Cap Screw for Waukesha S2065 Pumps
Product Code: 103-116290
Contact GVC
16
Slinger, 142-215JM for Waukesha S2065 Pumps
Product Code: 103-116291
Contact GVC
17
Plug for Waukesha S2065 Pumps
Product Code: 103-116292
Contact GVC
18
Block, Water Cascade for Waukesha S2065 Pumps
Product Code: 103-116293
Contact GVC
19
Socket Head Bolt for Waukesha S2065 Pumps
Product Code: 103-116294
Contact GVC
20
Tubing for Waukesha S2065 Pumps
Product Code: 103-116295
Contact GVC
21
Tube Fitting for Waukesha S2065 Pumps
Product Code: 103-116296
Contact GVC
1*
Pump Casing (Specify Connections and Polish) for Waukesha S2065 Pumps
Product Code: 103-116297
Contact GVC
2*
Impeller (Specify Size and Polish), Small Bore for Waukesha S2065 Pumps
Product Code: 103-116298
Contact GVC
3*
Impeller Retainer (Specify Polish) for Waukesha S2065 Pumps
Product Code: 103-116299
Contact GVC
4*
Impeller O-Ring for Waukesha S2065 Pumps, Viton® (SFY, FKM)
Product Code: 103-116300
Contact GVC
4*
Impeller O-Ring for Waukesha S2065 Pumps, EPDM
Product Code: 103-116301
Contact GVC
4*
Impeller O-Ring for Waukesha S2065 Pumps, Silicone
Product Code: 103-116302
Contact GVC
4*
Impeller O-Ring for Waukesha S2065 Pumps, FFKM
Product Code: 103-116303
Contact GVC
9*
Casing O-Ring for Waukesha S2065 Pumps, Viton® (SFY, FKM)
Product Code: 103-116304
Contact GVC
9*
Casing O-Ring for Waukesha S2065 Pumps, EPDM
Product Code: 103-116305
Contact GVC
9*
Casing O-Ring for Waukesha S2065 Pumps, Silicone
Product Code: 103-116306
Contact GVC
9*
Casing O-Ring for Waukesha S2065 Pumps, PTFE Encapsulated
Product Code: 103-116307
Contact GVC
9*
Casing O-Ring for Waukesha S2065 Pumps, FFKM
Product Code: 103-116308
Contact GVC
10*
Backplate (Specify Polish) for Waukesha S2065 Pumps
Product Code: 103-116309
Contact GVC
11*
Casing Clamp for Waukesha S2065 Pumps
Product Code: 103-116310
Contact GVC
12*
Key, 184-215JM Motor Frame for Waukesha S2065 Pumps
Product Code: 103-116311
Contact GVC
