Corrtef™ Corrugated FEP Tubing offers excellent product protection, product visibility, and flexibility. Corrtef™ Corrugated FEP Tubing is used widely in the Food, Dairy, Beverage, Biotech, Pharmaceutical, and all other Sanitary Process industries to transport products and fluids. Corrtef™ Corrugated FEP Tubing is available in custom lengths, contact us.
Construction
Approvals
Pressure & Temperature
Applications

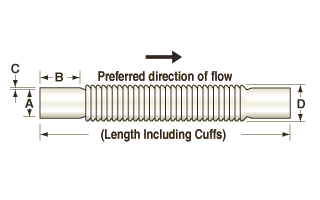

A | B | C | D | Working Pressure | Burst Pressure |
---|---|---|---|---|---|
1/4" | 3/4" | .015" | 3/8" | 62 PSI | 248 PSI |
3/8" | 1" | .020" | 9/16" | 50 PSI | 200 PSI |
1/2" | 1" | .025" | 3/4" | 42 PSI | 168 PSI |
5/8" | 1" | .025" | 15/16" | 37 PSI | 148 PSI |
3/4" | 1 1/2" | .030" | 1 1/16" | 30 PSI | 120 PSI |
7/8" | 1 1/2" | .030" | 1 1/4" | 25 PSI | 100 PSI |
1" | 2" | .035" | 1 3/8" | 20 PSI | 80 PSI |
1 1/4" | 2" | .035" | 1 5/8" | 17 PSI | 68 PSI |
1 1/2" | 2" | .035" | 1 13/16" | 15 PSI | 60 PSI |
2" | 2" | .040" | 2 5/8" | 12 PSI | 48 PSI |
