Convoluted PTFE Unreinforced Tubing offers excellent product protection, product visibility, and flexibility. Convoluted PTFE Unreinforced Tubing is used widely in the Food, Dairy, Beverage, Biotech, Pharmaceutical, and all other Sanitary Process industries to transport products and fluids. Convoluted PTFE Unreinforced Tubing is available in custom lengths, contact us.
Construction
Approvals
Pressure & Temperature
Applications

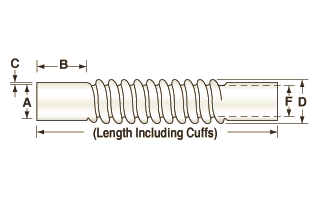

A | B | C | D | F | Working Pressure | Burst Pressure | Bend Radius | Vacuum (In.Hg) |
---|---|---|---|---|---|---|---|---|
1/4" | 3/4" | .015" | .320" | .185" | 62 PSI | 248 PSI | 1/2" | 27 |
5/16" | 1" | .020" | .414" | .277" | 56 PSI | 220 PSI | 3/4" | 27 |
3/8" | 1" | .020" | .450" | .308" | 52 PSI | 200 PSI | 7/8" | 27 |
1/2" | 1" | .020" | .590" | .431" | 40 PSI | 160 PSI | 1 1/4" | 27 |
5/8" | 1 1/4" | .025" | .660" | .493" | 35 PSI | 140 PSI | 1 1/2" | 27 |
3/4" | 1 1/2" | .025" | .780" | .617" | 30 PSI | 120 PSI | 1 3/4" | 27 |
1" | 2" | .030" | 1.10" | .862" | 27 PSI | 100 PSI | 2.230" | 27 |
1 1/4" | 2 1/2" | .035" | 1.60" | 1.17" | 24 PSI | 80 PSI | 2 3/4" | 27 |
1 1/2" | 2 1/2" | .040" | 1.91" | 1.45" | 20 PSI | 65 PSI | 3" | 27 |
2" | 2 1/2" | .043" | 2.45" | 1.98" | 17 PSI | 55 PSI | 4 1/4" | 27 |
3" | 3" | .062" | 3 3/4" | 3" | 15 PSI | 50 PSI | 7" | 27 |
4" | 3" | .062" | 4 3/4" | 4" | 12 PSI | 40 PSI | 9" | 27 |
