Convoluted PTFE Wire Reinforced Tubing offers excellent product protection, product visibility, and flexibility. Convoluted PTFE Wire Reinforced Tubing is used widely in the Food, Dairy, Beverage, Biotech, Pharmaceutical, and all other Sanitary Process industries to transport products and fluids. Convoluted PTFE Wire Reinforced Tubing is available in custom lengths, contact us.
Construction
Approvals
Pressure & Temperature
Applications

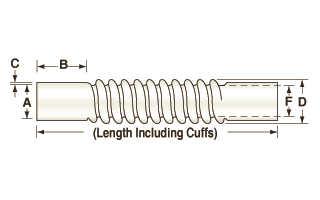

A | B | C | D | F | Working Pressure | Burst Pressure | Bend Radius | Vacuum (In.Hg) |
---|---|---|---|---|---|---|---|---|
1/4" | 3/4" | .015" | .320" | .185" | 100 PSI | 400 PSI | 1/2" | 27 |
5/16" | 1" | .020" | .414" | .277" | 87 PSI | 348 PSI | 3/4" | 27 |
3/8" | 1" | .020" | .450" | .308" | 75 PSI | 300 PSI | 7/8" | 27 |
1/2" | 1" | .020" | .590" | .431" | 68 PSI | 272 PSI | 1 1/4" | 27 |
5/8" | 1 1/4" | .025" | .660" | .493" | 62 PSI | 248 PSI | 1 1/2" | 27 |
3/4" | 1 1/2" | .025" | .780" | .617" | 55 PSI | 220 PSI | 1 3/4" | 27 |
1" | 2" | .030" | 1.10" | .862" | 45 PSI | 180 PSI | 2.230" | 27 |
