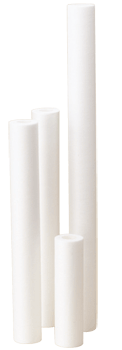

Pentek® PD Series Polydepth® Cartridges are made of thermally bonded micro-fiber construction for higher filtration efficiency and consistent liquid flow rates. As with our other polypropylene only filter cartridges, the PD Series will not impart taste, odor, or color and offers superior chemical resistance to meet a wide range of industrial and food and beverage applications. PD Series Cartridges are available in 1 to 50 micron ratings and in 10 to 40 cartridge lengths to fit most double open ended filter housings.
Please see Manufacturer's Data Sheet for flow charts and more detailed information
Model | Maximum Dimensions | Micron Rating* (nominal) | Initial deltaP (psi) @ Flow Rate (gpm) |
---|---|---|---|
PD-1-934 | 2 1/2" x 9 7/8" (64 mm x 251 mm) | 1 | <2 psi @ 2 gpm (<0.14 bar @ 7.6 Lpm) |
PD-5-934 | 2 1/2" x 9 7/8" (64 mm x 251 mm) | 5 | <2 psi @ 2 gpm (<0.14 bar @ 7.6 Lpm) |
PD-10-934 | 2 1/2" x 9 7/8" (64 mm x 251 mm) | 10 | <2 psi @ 2 gpm (<0.14 bar @ 7.6 Lpm) |
PD-25-934 | 2 1/2" x 9 7/8" (64 mm x 251 mm) | 25 | <2 psi @ 2 gpm (<0.14 bar @ 7.6 Lpm) |
PD-50-934 | 2 1/2" x 9 7/8" (64 mm x 251 mm) | 50 | <2 psi @ 2 gpm (<0.14 bar @ 7.6 Lpm) |
PD-1-20 | 2 1/2" x 20" (64 mm x 510 mm) | 1 | <2 psi @ 5 gpm (<0.14 bar @ 19 Lpm) |
PD-5-20 | 2 1/2" x 20" (64 mm x 510 mm) | 5 | <2 psi @ 5 gpm (<0.14 bar @ 19 Lpm) |
PD-10-20 | 2 1/2" x 20" (64 mm x 510 mm) | 10 | <2 psi @ 5 gpm (<0.14 bar @ 19 Lpm) |
PD-25-20 | 2 1/2" x 20" (64 mm x 510 mm) | 25 | <2 psi @ 5 gpm (<0.14 bar @ 19 Lpm) |
PD-50-20 | 2 1/2" x 20" (64 mm x 510 mm) | 50 | <2 psi @ 5 gpm (<0.14 bar @ 19 Lpm) |
PD-1-30 | 2 1/2" x 30" (64 mm x 763 mm) | 1 | <2 psi @ 7 gpm (<0.14 bar @ 26.5 Lpm) |
PD-5-30 | 2 1/2" x 30" (64 mm x 763 mm) | 5 | <2 psi @ 7 gpm (<0.14 bar @ 26.5 Lpm) |
PD-25-30 | 2 1/2" x 30" (64 mm x 763 mm) | 25 | <2 psi @ 7 gpm (<0.14 bar @ 26.5 Lpm) |
PD-1-40 | 2 1/2" x 40" (64 mm x 1017 mm) | 1 | <2 psi @ 9 gpm (<0.14 bar @ 34 Lpm) |
PD-5-40 | 2 1/2" x 40" (64 mm x 1017 mm) | 5 | <2 psi @ 9 gpm (<0.14 bar @ 34 Lpm) |
PD-25-40 | 2 1/2" x 40" (64 mm x 1017 mm) | 25 | <2 psi @ 9 gpm (<0.14 bar @ 34 Lpm) |
* Not Performance Tested or Certified by NSF. |
