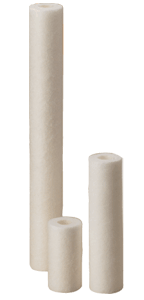

Pentek® P Series Spun-Bonded Cartridges are manufactured from pure 100% polypropylene fibers. The fibers are carefully spun together to form a gradient density from outer to inner surfaces. P Series cartridges are designed for purity and do not impart taste, odor or color. The Polypropylene construction provides superior chemical resistance and is not prone to microbial attack. P Series cartridges are available in a wide array of sizes and micron ratings to fit the entire Pentek® Standard, Slim-Line®, and 3G ranges of filter housings.
Please see Manufacturer's Data Sheet for flow charts and more detailed information
Model | Maximum Dimensions | Micron Rating* (nominal) | Initial deltaP (psi) @ Flow Rate (gpm) |
---|---|---|---|
P5-478 | 23/8" x 47/8" (60 mm x 124 mm) | 5 | 0.3 psi @ 2 gpm (<0.1 bar @ 7.6 Lpm) |
P1 | 23/8" x 93/4" (60 mm x 248 mm) | 1 | 0.6 psi @ 5 gpm (<0.1 bar @ 19 Lpm) |
P5 | 23/8" x 93/4" (60 mm x 248 mm) | 5 | 0.2 psi @ 5 gpm (<0.1 bar @ 19 Lpm) |
P25 | 23/8" x 93/4" (60 mm x 248 mm) | 25 | 0.2 psi @ 5 gpm (<0.1 bar @ 19 Lpm) |
P1-20 | 23/8" x 20" (60 mm x 508 mm) | 1 | 0.6 psi @ 10 gpm (<0.1 bar @ 38 Lpm) |
P5-20 | 23/8" x 20" (60 mm x 508 mm) | 5 | 0.6 psi @ 10 gpm (<0.1 bar @ 38 Lpm) |
P25-20 | 23/8" x 20" (60 mm x 508 mm) | 25 | 0.2 psi @ 10 gpm (<0.1 bar @ 38 Lpm) |
P1-30 | 23/8" x 30" (60 mm x 762 mm) | 1 | 0.5 psi @ 10 gpm (<0.1 bar @ 38 Lpm) |
P5-30 | 23/8" x 30" (60 mm x 762 mm) | 5 | 0.2 psi @ 10 gpm (<0.1 bar @ 38 Lpm) |
* Based on manufacturer's internal testing. |
