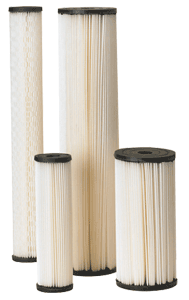

Pentek® S1 Series Pleated Cellulose Cartridges are designed for general purpose water filtration. The media is pleated around a polypropylene core and the ends are immersed in a thermo-setting vinyl plastisol resulting in a unified end cap and gasket. The seam is overlapped and sonically welded to reduce bypass and improve filter efficiency. S1 Series Cartridges are economically priced, and available in a 20 micron rating and in 10” to 20” cartridge lengths to fit standard double open ended filter housings. S1 Series Cartridges are also available to fit the Big Blue® filter housing.
Please see Manufacturer's Data Sheet for flow charts and more detailed information
| Model | Maximum Dimensions | Micron Rating (nominal) | Initial deltaP (psi) @ Flow Rate (gpm) | Surface Area | Recommended Flow Rate |
|---|---|---|---|---|---|
| S1 | 2 5/8" x 9 3/4" (67 mm x 248 mm) | 20 | 2.4 psi @ 10 gpm (0.17 bar @ 38 Lpm) | 580 in.² (0.38 m²) | 12 gpm (45 Lpm) |
| S1-20 | 2 5/8" x 20" (67 mm x 508 mm) | 20 | 0.8 psi @ 10 gpm (0.06 bar @ 38 Lpm) | 1110 in.² (0.72 m²) | 15 gpm (57 Lpm) |
| S1-BB | 4 1/2" x 9 3/4" (114 mm x 248 mm) | 20 | 1.2 psi @ 10 gpm (0.08 bar @ 38 Lpm) | 2070 in.² (1.34 m²) | 20 gpm (76 Lpm) |
| S1-20BB | 4 1/2" x 20" (114 mm x 508 mm) | 20 | 1.2 psi @ 10 gpm (0.08 bar @ 38 Lpm) | 4280 in.² (2.77 m²) | 35 gpm (132 Lpm) |
