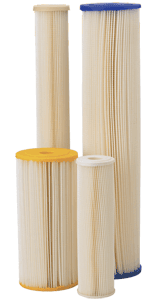

Pentek® ECP Series cartridges are manufactured from a special formulation of resin-impregnated cellulose and polyester fibers. This blend provides a higher wet strength compared to standard cellulose cartridges. The media is pleated around a polypropylene core for strength and the ends are immersed in a thermo-setting vinyl plastisol. This seals each end of the pleat and fuses the components together forming a unified end cap and gasket. The ECP series is available in 1 micron, 5 micron, 10 micron, and 50 micron. The standard 10 inch cartridge contains 5 square feet of media compared to other cartridges that contain 4.5 square feet. ECP series cartridges are available for Big Blue® Filter housings and have 18 square feet and 36 square feet respectively for 10 inch and 20 inch sumps.
ECP Series Cartridges are sized to Pentek® Standard and Big Blue® Filter Housings.
ECP Series Cartridges replace Pentek® CP and HFCP Series Cartridges.
Please see Manufacturer's Data Sheet for flow charts and more detailed information
Model | Endcap Color | Maximum Dimensions | Micron Rating (nominal) | Initial deltaP (psi) @ Flow Rate (gpm) |
---|---|---|---|---|
ECP1-10 | Tan | 2 5/8" x 9 3/4" (67 mm x 248 mm) | 1 | <1 psi @ 10 gpm (<0.1 bar @ 38 Lpm) |
ECP5-10 | White | 2 5/8" x 9 3/4" (67 mm x 248 mm) | 5 | <1 psi @ 10 gpm (<0.1 bar @ 38 Lpm) |
ECP20-10 | Blue | 2 5/8" x 9 3/4" (67 mm x 248 mm) | 20 | <1 psi @ 10 gpm (<0.1 bar @ 38 Lpm) |
ECP50-10 | Yellow | 2 5/8" x 9 3/4" (67 mm x 248 mm) | 50 | <1 psi @ 10 gpm (<0.1 bar @ 38 Lpm) |
ECP1-20 | Tan | 2 5/8" x 20" (67 mm x 508 mm) | 1 | <1 psi @ 10 gpm (<0.1 bar @ 38 Lpm) |
ECP5-20 | White | 2 5/8" x 20" (67 mm x 508 mm) | 5 | <1 psi @ 10 gpm (<0.1 bar @ 38 Lpm) |
ECP20-20 | Blue | 2 5/8" x 20" (67 mm x 508 mm) | 20 | <1 psi @ 10 gpm (<0.1 bar @ 38 Lpm) |
ECP50-20 | Yellow | 2 5/8" x 20" (67 mm x 508 mm) | 50 | <1 psi @ 10 gpm (<0.1 bar @ 38 Lpm) |
ECP1-BB | Tan | 4 1/2" x 9 3/4" (114 mm x 248 mm) | 1 | <1 psi @ 20 gpm (<0.1 bar @ 76 Lpm) |
ECP5-BB | White | 4 1/2" x 9 3/4" (114 mm x 248 mm) | 5 | <1 psi @ 20 gpm (<0.1 bar @ 76 Lpm) |
ECP20-BB | Blue | 4 1/2" x 9 3/4" (114 mm x 248 mm) | 20 | <1 psi @ 20 gpm (<0.1 bar @ 76 Lpm) |
ECP50-BB | Yellow | 4 1/2" x 9 3/4" (114 mm x 248 mm) | 50 | <1 psi @ 20 gpm (<0.1 bar @ 76 Lpm) |
ECP1-20BB | Tan | 4 1/2" x 20" (114 mm x 508 mm) | 1 | <1 psi @ 20 gpm (<0.1 bar @ 76 Lpm) |
ECP5-20BB | White | 4 1/2" x 20" (114 mm x 508 mm) | 5 | <1 psi @ 20 gpm (<0.1 bar @ 76 Lpm) |
ECP20-20BB | Blue | 4 1/2" x 20" (114 mm x 508 mm) | 20 | <1 psi @ 20 gpm (<0.1 bar @ 76 Lpm) |
ECP50-20BB | Yellow | 4 1/2" x 20" (114 mm x 508 mm) | 50 | <1 psi @ 20 gpm (<0.1 bar @ 76 Lpm) |
