Behringer® Rounded Hygienic Style Hangers were developed with the input of end users, contractors, and engineers and answer many of the sanitary industry concerns including safety and ease of installation. The rounded and self contained style of the RH style Hanger eliminates loose fasteners and sharp edges during installation. The Weld Plate Anchor RH Style Hangers can be used as a support where the pipe is firmly held within the two halves of the support. Weld Plate Anchor Rounded Hygienic Hangers include a base plate that can be welded to any metal surface. RH Style Hardware is available in 304 SS, and 316L SS with a Polysulfone insert. RH Style Hangers are available to support a wide range of pipe and tube sizes ranging from ¼” to 6” tube. Metric DIN and ISO sizes are also available. Be sure to contact us.

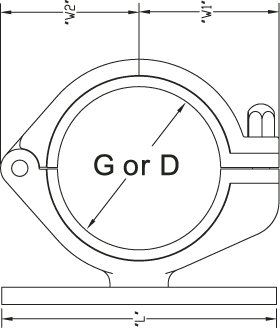

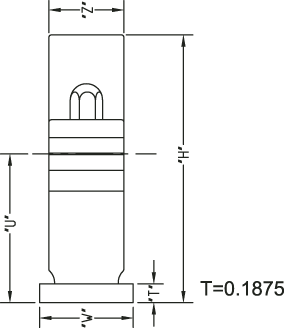

| Size | D | W1 | W2 | Z | U | H | L | W |
|---|---|---|---|---|---|---|---|---|
| 1/2" Pipe | 0.840" | 1.20" | 1.28" | 0.75" | 1.44" | 2.28" | 1.50" | 1.50" |
| 3/4" Cu Tube | 0.875" | 1.20" | 1.28" | 0.75" | 1.44" | 2.28" | 1.50" | 1.50" |
| 1" Tube | 1.000" | 1.20" | 1.28" | 0.75" | 1.44" | 2.28" | 1.50" | 1.50" |
