Hanger Hardware including threaded rod, beam clamps and coupling nuts are used for a wide variety of pipe hanger installations. GVC Direct offers most of the common hardware used in the Sanitary Process Industry. For any special requirements, be sure to contact us.

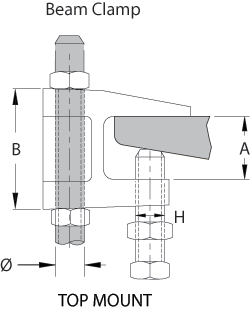

| Clamp Rod Size | A | B | Max. Load Top (lbs.) | Max. Load Bottom (lbs.) |
|---|---|---|---|---|
| 3/8" | 3/4" | 1 1/8" | 500 | 250 |
| 1/2" | 3/4" | 1 1/8" | 950 | 760 |
| 1/4" | 15/16" | 13/16" | 250 | 100 |
| 3/8" | 3/4" | 1 1/8" | 500 | 250 |
| 1/2" | 3/4" | 1 1/8" | 950 | 760 |
| All-Thread | Tensile Strength (psi) |
|---|---|
| 1/4 - 20 | 65000 |
| 3/8 - 16 | 65000 |
| 1/2 - 13 | 65000 |
| 5/8 - 11 | 80000 |
| 3/4 - 10 | 65000 |
| Coupling Size | Max. Rec. Load (lbs.) |
|---|---|
| 1/4" | 240 |
| 3/8" | 610 |
| 1/2" | 1130 |
| 5/8" | 1810 |
| 3/4" | 2710 |
