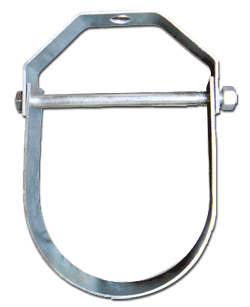

Clevis Style Hangers are extremely versatile and represent an economic alternative for supporting pipe and tubing lines in technical and non-critical areas. Clevis Hangers are normally installed by hanging from a threaded rod. Clevis Hangers are available in Galvanized Steel as standard, 304 SS and Copper Plated Steel are available upon request. GVC Direct offers Clevis Hangers in a wide range of pipe and tube sizes ranging from 1/2” to 6”. Larger sizes and custom materials are available. Be sure to contact us.
| Pipe Size | A | B | Max. Rec. Load (lbs.) |
|---|---|---|---|
| 1/2" | 2 1/8" | 1 5/8" | 610 |
| 3/4" | 2 3/8" | 1 3/4" | 610 |
| 1" | 2 3/4" | 2 1/16" | 610 |
| 1 1/4" | 3 5/16" | 2 3/8" | 610 |
| 1 1/2" | 3 15/16" | 2 15/16" | 610 |
| 2" | 4 1/2" | 3 1/4" | 610 |
| 2 1/2" | 5 1/4" | 3 3/4" | 1130 |
| 3" | 6" | 4 1/8" | 1130 |
| 4" | 7 3/4" | 5 3/8" | 1130 |
| 6" | 11 3/4" | 8 1/4" | 1940 |
