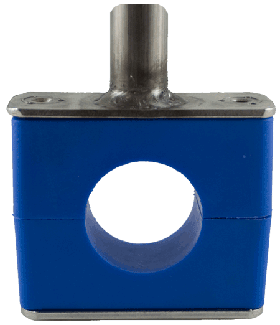

Behringer® Bar or Rod type Block Style Hangers are very versatile in field installations. The Hanger Rod can be cut to length in the field and welded to any supporting metal surface. Block Style Hangers Guides clamp the pipe or tube loosely within the two halves allowing the pipe or tube to float with thermal expansion. Materials of Construction can be tailored in Block Style Hangers in order to support extremely hot or cold fluids. Block Halves are available in Polypropylene and high temperature Santoprene. Block Style Hardware is available in 304 SS, 316L SS, and Zinc Plated Steel. Block Style Hangers are available to support a wide range of pipe and tube sizes ranging from ¼ tube to 6 pipe. Many other sizes and insert materials are available. Be sure to contact us.

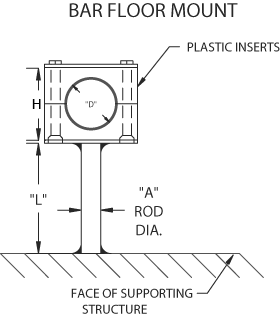

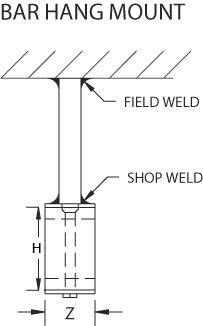

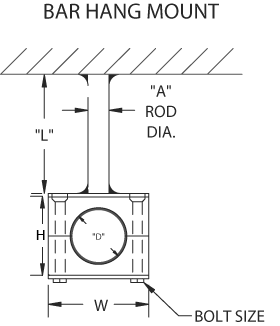

Size | D | W | H | Z | U | Bolt Size | Rod Dia. |
---|---|---|---|---|---|---|---|
1/4" Tube | 0.250" | 1.88" | 1.44" | 1.19" | 0.81" | 1/4-20" | 0.50" |
3/8" Tube | 0.375" | 1.88" | 1.44" | 1.19" | 0.81" | 1/4-20" | 0.50" |
1/2" Tube | 0.500" | 1.88" | 1.44" | 1.19" | 0.81" | 1/4-20" | 0.50" |
3/4" Tube | 0.750" | 1.88" | 1.44" | 1.19" | 0.81" | 1/4-20" | 0.50" |
1/2" Pipe | 0.840" | 1.88" | 1.44" | 1.19" | 0.81" | 1/4-20" | 0.50" |
1" Tube | 1.000" | 1.88" | 1.44" | 1.19" | 0.81" | 1/4-20" | 0.50" |
